Fan Filter Unit Specifications
| Model |
FFU-500 |
FFU-1000 |
FFU-1500 |
FFU-2000 |
|
out size mm
(W*L*H)
|
575*575*230 |
575*1175*230 |
875*1175*230 |
1175*1175*230 |
|
Filter size mm
(W*L*H)
|
570*570*69 |
570*1170*69 |
870*1170*69 |
1170*1170*59 |
| Air flow |
500m³/h |
1000m³/h |
1500m³/h |
2000m³/h |
| Pressure |
210Pa |
210Pa |
220Pa |
230Pa |
| Power |
170W |
170W |
210W |
275W |
| Noise |
47-55dB |
47-55dB |
50-58dB |
50-58dB |
| Weight |
27KG |
34KG |
46KG |
55KG |
| Cleanliness |
Class 100 (ISO 14644-1) |
| Material |
Stainless steel/ Galvanized steel/ Coated steel |
| Voltage |
AC 220V/50HZ AC 380V/50HZ |

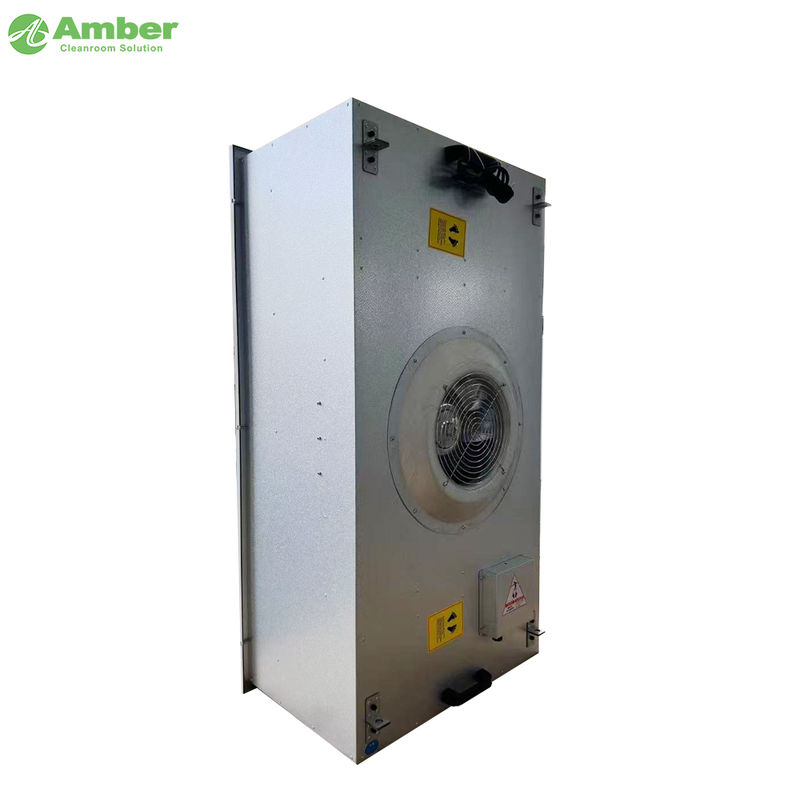

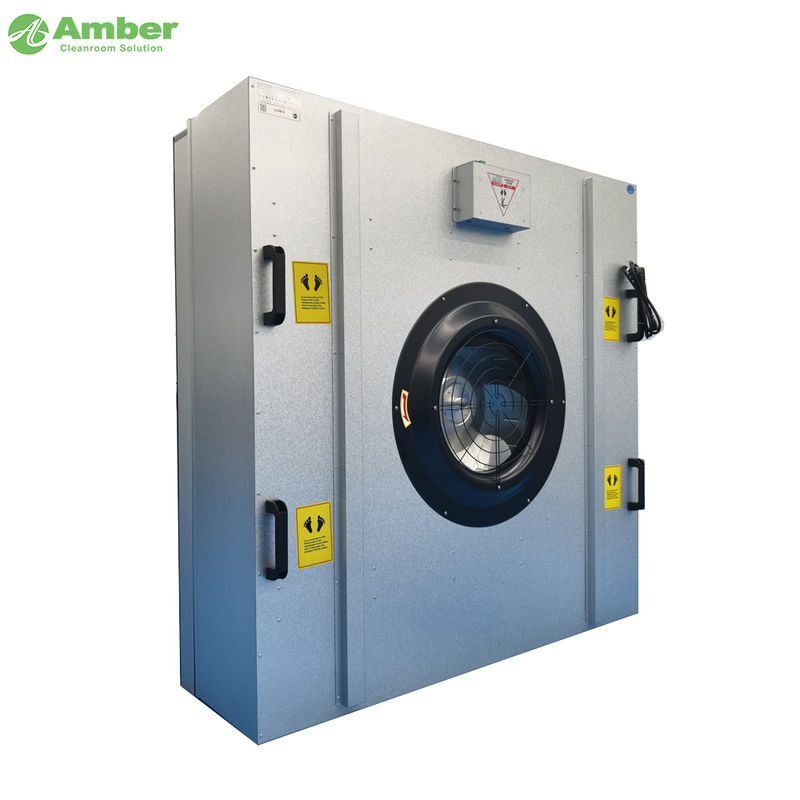

The stability of the air purification equipment and its performance is important in harsh settings such as hospitals, laboratories, and cleanrooms. The Amber's HEPA Filter FFU is able to use an intelligent group control system, as it allows both independent control of one unit and the coordinated control of various devices as a whole to guarantee consistent and steady clean air delivery.
High-efficiency filtration performance
The core HEPA filter can be configured to meet specific needs:
- H13: 99.97% filtration efficiency for 0.3μm particles
- H14: 99.997% filtration efficiency for 0.3μm particles
- U15 Ultra-High-Efficiency: 99.999% filtration efficiency for 0.1μm particles
This implies that the FFU HEPA filter is very effective at preventing all particles that are small in the air, as well as smoke and microorganisms that are dispersed in the air, and then offers consistent clean air in medical procedures, pharmaceutical processes, and precision laboratories.
Flexible Material Options
The housing is available in a variety of materials, including galvanized steel, SUS304 stainless steel, SUS201 stainless steel, and cold plate paint (standard white, custom colors available). This ensures the functionality meets the needs of various scenarios while also ensuring aesthetics and durability.
The filter utilizes an aluminum frame and fiberglass filter paper. The impellers are available in either plastic or aluminum. Aluminum impellers are widely used in high-end applications due to their superior durability and stability.
Applications
- Hospitals: Ensure air cleanliness in critical areas such as operating rooms and ICUs
- Pharmaceutical factories: Meet the stringent cleanroom requirements of GMP certification
- Electronics/semiconductor workshops: Effectively prevent particulate matter from damaging products
- Research laboratories: Provide a controlled, stable clean air environment for precision experiments

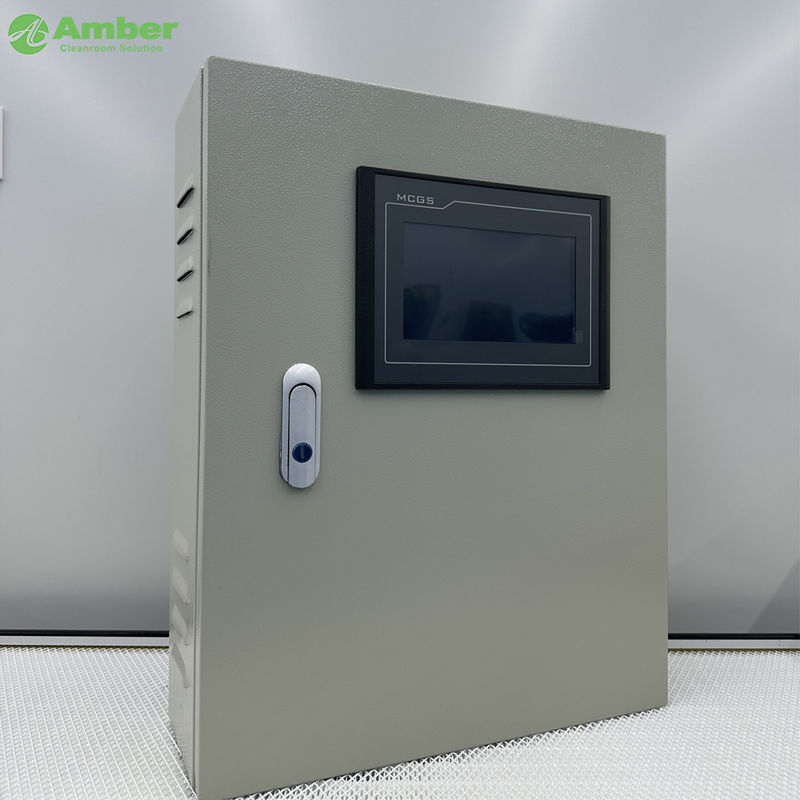

Advantages of Intelligent Group Control
While conventional air filtration units often require individual control, this intelligent HEPA Filter FFU enables group control:
- Centralized management of multiple devices
- More precise air volume adjustment
- Higher operational efficiency
This design significantly reduces labor management costs while improving overall system stability and flexibility.
FFU Fan AC Motor vs DC Motor
| Type |
DC Motor |
AC Motor |
| Energy Consumption |
Low power consumption |
High energy consumption |
| Advantages |
Energy-saving, long lifespan |
Affordable and easy to maintain |
| Noise level |
55dBA±5dBA |
58dBA±5dBA |
Our DC motors are Japanese Nidec brand. If your budget is high, you can choose a DC FFU.
Cost-Effectiveness and Return on Investment
Equipment purchase and operating costs are just as important as efficient air purification. We offer transparent and affordable FFU HEPA Filter solutions, customizing the optimal configuration for your specific application to help you find the optimal balance between performance and cost.
Want a more flexible FFU Fan Filter Unit solution? Contact us for details.
FAQ
Q1: How often should the filter be replaced?
A: The replacement cycle depends on the operating environment and operating intensity. In cleanroom or hospital applications, it's generally recommended to inspect the HEPA filter every 6–12 months, with replacement determined based on differential pressure or filtration efficiency to ensure continued high performance of the FFU HEPA unit.
Q2: How does the intelligent group control system operate?
A: The group control system is simple and intuitive, accessible via a centralized control panel or software platform. Users can adjust air volume, monitor operating status, and manage zones with a single click, significantly reducing O&M costs and making the management of multiple FFU HEPA units more efficient.
Q3: What factors influence the price of an FFU HEPA filter?
A: The price primarily depends on the housing material (e.g., SUS304 stainless steel, galvanized steel), filter grade (H13/H14/U15), motor configuration, and whether custom colors or group control features are required. We provide transparent and reasonable FFU HEPA filter pricing based on your specific needs.
